Fireplace Wood Insert Quadra-Fire Voyageur
Convert your wood fireplace to gas, for a new standard of warmth, beauty, safety and convenience.
The Voyageur Cast Iron Wood Insert
and The Voyageur "Grand" Insert,
feature a flush front with elegant lines and a large, unobstructed viewing area. Both of these inserts use advanced technology.
Therefore you can sit back and enjoy the warm performance, knowing that your roaring, carbon-neutral fire is lowering your heating bills.
VOYAGEUR and VOYAGEUR - Grand
The Voyageur Grand is the latest wood - burning insert from Quadra-Fire.
It harnesses proven technology to achieve long, clean burns.
Powerful heat production.
Heavy duty cast iron construction and accelerated lifecycle testing make the Voyageur Grand a rugged heating option.

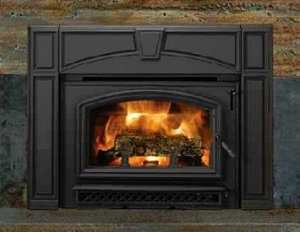

Voyageur Grand shown in black with full cast surround.
46,300 BTUs — heats 900 to 2,400 square feet, based on climate and home efficiency.
1.8 cu. ft. firebox capacity / 20" maximum log length
Up to 12 hours of burn time from each load of wood
Easy start-up
Limited Lifetime Warranty
VOYAGEUR Specifications

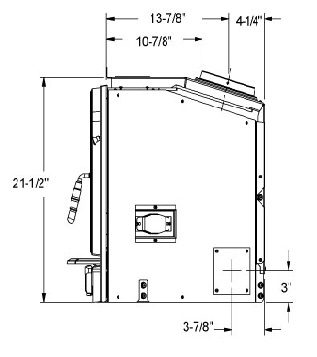

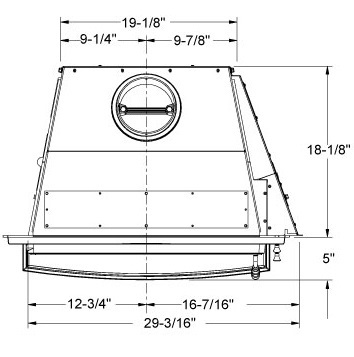

Front Width: 29-3/16 " Back Width: 19-1/8 Height: 21-1/2 Depth: 18-1/8 Extension onto Hearth: 5 Peak BTU/Hour Output: 46,300 Firebox Capacity: 1.8 cu. ft. Maximum Burn Time: 12 hours Heating Capacity*: 900 - 2,400 sq ft.
Quadra-Fire® Four-Point Burn System
Automatic Combustion Control (ACC)
Voyageur
Steady State: up to 77%
Efficiency Chart
Btus will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Please refer to the owners/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
For wood-burning appliances: Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used, and installation.
