The power of communication

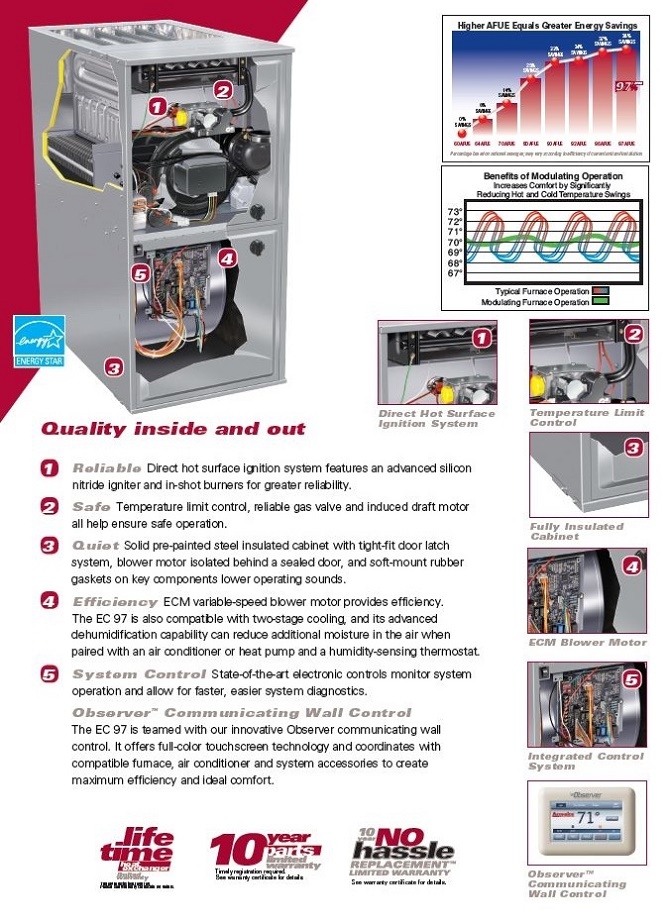

The Arcoaire® VC/EC 97 Variable-Speed Modulating Gas Furnace featuring the Observer™ communicating system is designed to take your home to a new level of comfort and efficiency. Teamed with our Observer communicating wall control and the appropriate air conditioner and indoor coil, the VC/EC 97 functions as part of a complete communicating home comfort system. Various components of the system “talk” to each other electronically, fine-tuning comfort levels while maximizing energy savings.

Variable speed, consistent comfort

Unlike single-stage furnaces—which heat up fast and shut down fast, creating noticeable swings in temperature—the VC/EC 97 delivers consistent heat and overall comfort. When paired with a compatible thermostat, the modulating heat system operates at lower heat levels most of the time and automatically modulates to the higher heat production if temperatures drop. The variable-speed blower motor can also help increase comfort by maximizing moisture removal during cooling (air conditioner) operation. And the high efficiency blower motor can be run continuously to improve indoor air quality. Used with a humidity-sensingthermostat or dehumidistat.



 No more noisy heat

 The sturdy steel cabinet is thermal lined and insulated to reduce the amount of heat and operating noise that escapes. A sealed blower compartment, soft-mount components, and the variable-speed blower motor also reduce operating sounds. When matched with select Arcoaire air conditioners and evaporator coils, the ECM variable-speed blower motor can also boost cooling efficiency for increased SEER rating.§

 SEER stands for Seasonal Energy Efficiency Ratio.
 As compared to the Air-Conditioning, Heating and  Refrigeration Institute’s standard coil-only rating.











Exceptional protection

 Arcoaire units are backed by exceptional warranties, including our No Hassle Replacement™ limited warranty, which gives the original purchaser a replacement unit if the heat exchanger should fail due to defect within the first ten years. Upon timely registration, you also get a 10 year parts limited warranty and a lifetime limited warranty on the heat exchanger.*

The heart of efficiency

 The heart of every furnace is the heat exchanger. The proven RPJ® (Rigid Press Joint) heat exchanger is designed to move more heat to the outside surface for increased heat transfer. The weld-free interlocking clamshell design reduces cracking or separating over the life of the gas furnace. The RPJ heat exchanger plays a significant role in boosting this model’s efficiency to a 97% AFUE rating. So you can count on energy savings, especially compared to an older, less efficient furnace.





 AFUE stands for Annual Fuel Utilization Efficiency.

  • Furnace operates at 70% capacity for low-heat and 100% capacity for high-heat
  • Compatible with single or two-stage thermostat. (For optimal performance a two-stage thermostat is recommended)
  • Heat exchanger is constructed of all stainless steel for maximum corrosion resistance and thermal fatigue reliability
  • Low profile “34 inch” design is lighter and easier to handle and leaves room for optional accessories
  • Left or right side gas, electric, and condensate drainage connections
  • Integrated control board manages all operational functions and provides hookups for humidifier and electronic air cleaner
  • An insulated blower compartment, a slow-opening gas valve and a specially designed inducer system make it one of the

        quietest furnaces on the market today

  • Variable speed blower motor technology provides ultimate humidity control, quieter sound levels and year-round energy savings
  • Optional indoor or outdoor combustion air.
  • In addition, combustion air may be piped to either the top or side of the cabinet on all up flow models.
    • A special molded fitting is provided to ease installation
  • Solid bottom is standard
  • Control board diagnostics
